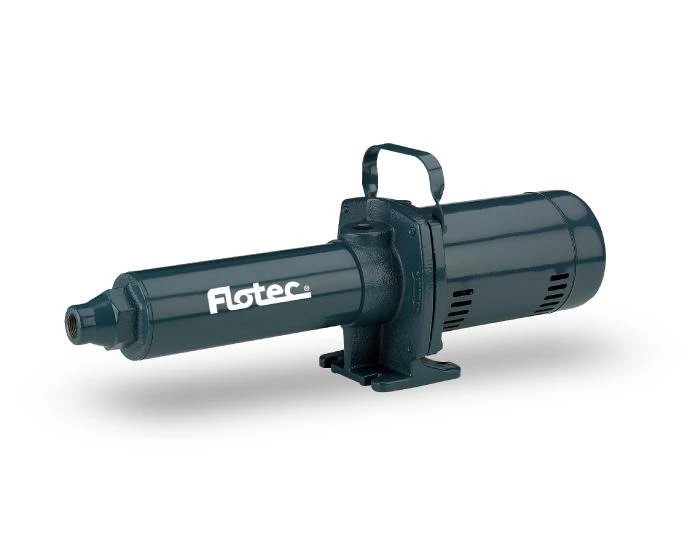

Flotec 1 HP Multistage Booster Pump Well Pumps And Pressure Tanks

The Flotec 1 HP Multistage Booster Pump is designed to boost city water pressure or water pressure from a private water system. Use this high pressure stream to wash down milk parlors, barns, garages and driveways, or for fire protection. The pump is portable with a convenient carrying handle. If an existing pressure water system is to be used as a water supply, it can be connected with available fittings and 3/4” or 1” high pressure hose to the pump inlet.

BODY MATERIAL:  Cast Iron

HORSEPOWER:  1 HP

NUMBER OF STAGES:  10

CAPACITY WITH 0 PSI SUCTION PRESSURE:  134 PSI @ 10 GPM, 188 PSI @ 0.1 GPM

MAXIMUM INLET PRESSURE:  80 PSI

CAPACITY WITH 80 PSI SUCTION PRESSURE:  214 PSI @ 10 GPM, 268 PSI @ 0.1 GPM

MAXIMUM TOTAL PRESSURE:  315 PSI

SUCTION SIZE:  ¾” female NPT

DISCHARGE SIZE:  ¾” female NPT

VOLTAGE:  230v / 115v @ 60 Hz (factory preset to 230v)

AMP DRAW (full load):  9.6 on 230v / 19.2 on 115v
